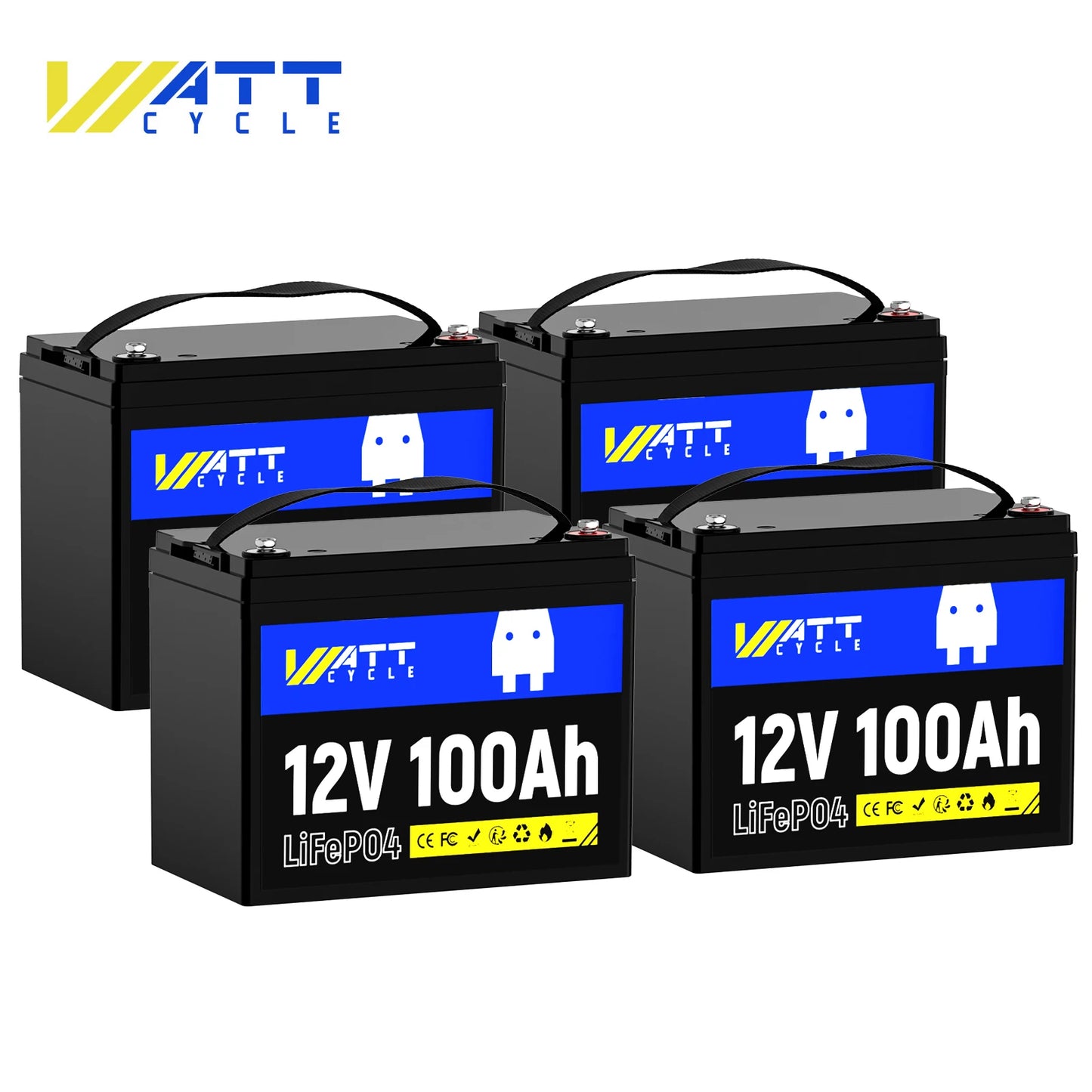

WattCycle LiFePO4 Battery 12V 100Ah Grade A+ Cells With BMS 100A Series or Parallel Connection Lithium Battery Packs
WattCycle LiFePO4 Battery 12V 100Ah Grade A+ Cells With BMS 100A Series or Parallel Connection Lithium Battery Packs
Couldn't load pickup availability
SPECIFICATIONS
Application: Home / Outdoor Power Supply
BMS: 100A
Brand Name: Wattcycle
Cell: EV Grade A+ LiFePO4 Cells
Certification: CE,FCC,RoHS,UL
Charge Method: CC / CV
Charge Temperature: 0℃ to 50℃ / 32℉ to 122℉
Charge Voltage: 14.6V ± 0.2V
Discharge Temperature: -20℃ to 70℃ / -4℉ to 158℉
Energy: 1280Wh
Feature 1: Low-Temperature Protection
Feature 10: Christmas gift
Feature 2: Up to 15000+ Deep Cycles
Feature 3: Lithium Iron Phosphate Battery
Feature 4: widely Used for Camper, RV, Road-Trip, Solar System
Feature 5: Deep Cycle Battery
Feature 6: 10-Year Lifespan for RV, Solar, Trolling Motor & Camping
Feature 7: Rechargeable Lithium Battery
Feature 8: Prefect for Solar System, Rvs, Marine, Vans, Trailer, Backup
Feature 9: Higher Energy Density
High-concerned chemical: None
Low-Temperature Charging Protection Auto Recovery: Yes (41℉/5℃)
Low-Temperature Protection: Yes (32℉/0℃)
Max. Continuous Charge Current: 100A
Max. Continuous Discharge Current: 100A
Max. Continuous Output Power: 1280W
Max. Discharge Current: 300±50A (≤5s)
Max. Expansion: 4S4P
Model Number: 12V100Ah
Nominal Capacity: 100Ah
Nominal Voltage: 12.8V
Nominal/Usable Capability: 100Ah
Origin: Mainland China
Rated Voltage: Others
Recommend Charge Current: 20A (0.2C)
Size: 10.2 x 6.6 x 8.2 inches / 25.91 x 16.76 x 20.83 cm
Storage Temperature: -10℃ to 50℃ / 14℉ to 122℉
Terminal: M8 bolts
Type: LiFePO4
Voltage: 12.8V
Warranty: 5 years
Waterproof Rating: IP65
Weight: 23.0lbs / 10.5kg
For European buyers, please note:
Currently, we do not ship to Candelaria, Canary Islands, Balearic Islands, Las Palmas, Santa Cruz de Tenerife,Sicilia.
For US buyer, please note:
Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico!!
Multiple Applications:
Ideal for RVs, vans, campers, and also suitable for home storage, off-grid systems, golf carts, trolling motors, and more.
High Performance:
This lithium battery offers a capacity of 100Ah with a standard voltage of 12.8V. Its 100% DOD (Depth of Discharge) guarantees a consistent and steady journey.
Built-in BMS Protection:
Featuring an integrated 100A BMS protection system, the lithium battery automatically disconnects if the discharge current exceeds 300±50A, ensuring optimal safety.
Drop-in Replacement:
Compactly designed at 10.2 x 6.6 x 8.2 inches (26 x 17 x 21 cm) and weighing nearly 2/3 lighter (23.0 lbs / 10.5 kg) than a lead-acid battery, this lithium battery fits seamlessly into a Group 24 battery box, maximizing energy density without requiring a larger box.
Low Temperature Protection:
Engineered to withstand extreme temperatures, the lithium battery operates efficiently in conditions as low as -4℉ (-20℃) and as high as 158℉ (70℃), adapting seamlessly to various climates.
Series or Parallel Connection:
Easily connect up to 4 batteries in series or 4 packs in parallel, achieving a remarkable capacity of up to 20.48kWh. Customize the connection to suit your needs.
Waterproof:
With IP65-rated waterproof protection, this lithium battery ensures reliable performance in wet and challenging environments, making it ideal for outdoor and marine applications.
Automotive Grade A+ Cells Only:
Supporting up to 5,000 cycles at 100% DOD, these cells come with multiple safety certifications and built-in overcharge, over-discharge, overcurrent, and short-circuit protection to ensure safety in various conditions.
3 Charging Methods:
Charges up to 5 times faster than a lead-acid battery. (WattCycle LiFePO4 battery charger, solar panel, or generator)
Registration for Extended Warranty:
The battery comes with a default 5-year warranty, which can be extended to 7 years with registration on the official website.
